Low Profile Grease Rated Food Truck Exhaust Fan - Sonic Ventilation
Price range: $1,572.00 through $1,997.00

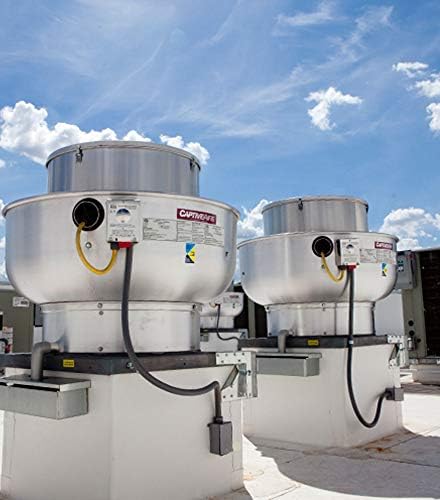

Sonic Ventilation-AIRE Restaurant Canopy Hood Grease Rated Exhaust Fan- Direct Drive Centrifugal Upblast Exhaust Fan- 28″ Fan Base, 208 Volt Three Phase Motor
Price range: $3,256.00 through $8,268.00

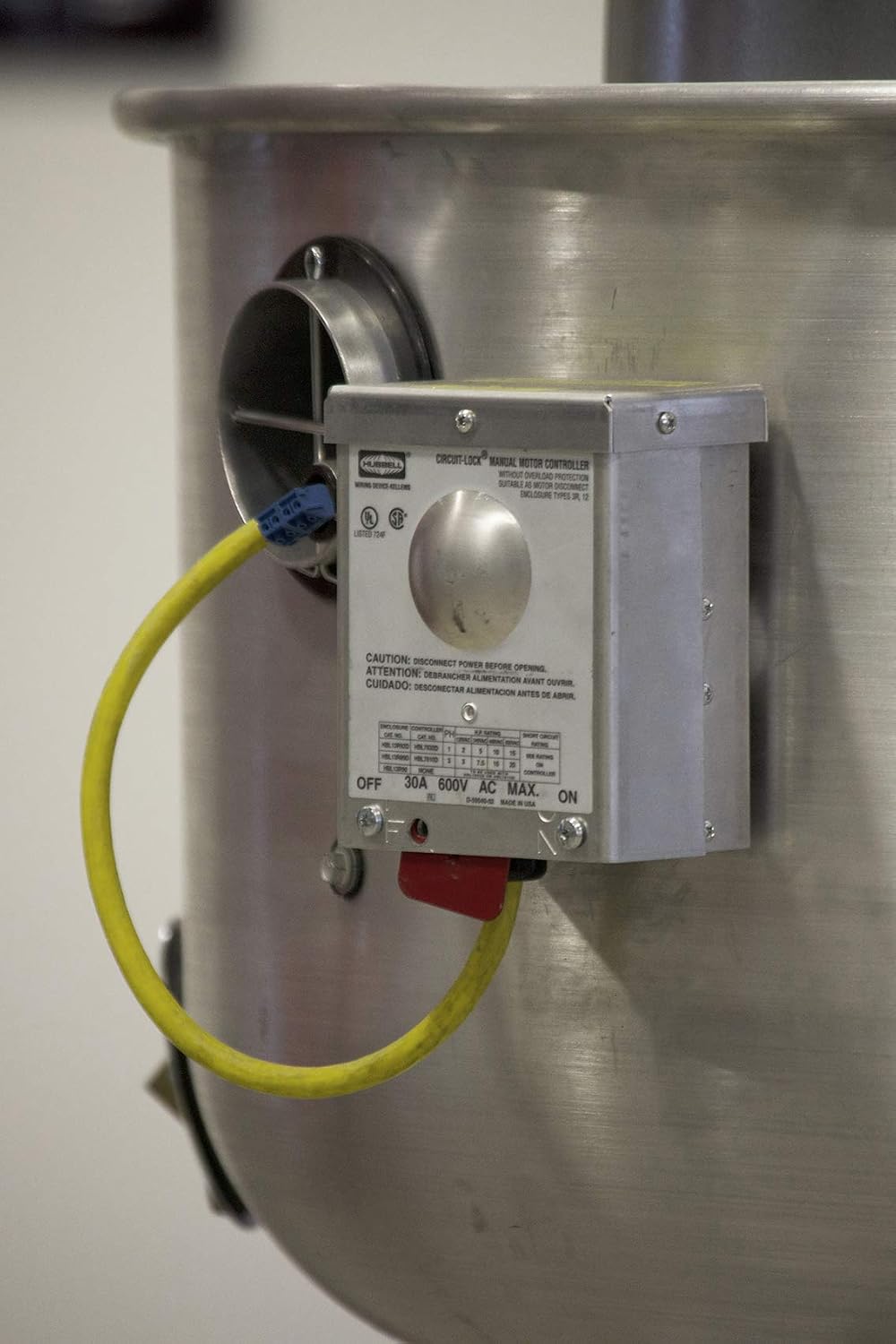

- High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (three phase), disconnect switch and 18-3/4″ wheel.
- Exhaust Fan handles 3000 CFM @ -1.000″ wc ESP, Fan runs at 1183 RPM
- 28″ x 28″ Fan Base Dimension/ 181 LBs/ 3000 CFM/ 1.5 HP 208 volt Three Phase Motor.
- Rated for restaurant grease and general ventilation applications. UL705, UL762, & ULC-S645 Rated. Included with the exhaust fan is a restaurant duty grease cup, down spout, and a hinge kit for exhaust fan roof curbs.
- Includes Variable Frequency Drive (VFD) – Factory mounted, wired and programmed. Benefits of Direct Drive Fans with VFD include – Fan speed control for balancing, soft start for increased motor life, reduced maintenance and failure potential due to elimination of belts, pulleys and bearings.
- As all fans are custom built, no returns or exchanges are accepted.
